Yikefeng Machine Tool
V-850

V-850

Category:

Vertical deep hole drill

Related Products Leave a Message

Project Description

Parameters for details
Maximum drilling depth of 300mm
6 tons of machine weight, 0.6 tons of table bearing, 20KW total power of machine, 18mm table t-groove.

Technical parameters
Drilling diameter: 2 ~ 16mm
Table size: 900×450mm
Machine size: 2600×2000×2200mm
Triaxial travel:
Table X (800mm) column Y (500mm) feed Z (380mm)
Spindle speed range (stepless) : 0 ~ 8000r/min
Tool feed speed range (stepless) : 7000mm/min (non-restrictive parameter)
Fast moving speed: 5000mm/min
Spindle motor power: 7.5KW
Three-axis servo motor power: X (1.3kw) Y (1.3kw) Z (2.9kw)
Oil pump power: high pressure pump (3.7kw) low pressure pump (5.5kw)
Power: 0.2kw
Oil temperature control system power: 3P
Cutting oil pressure: 10Mpa
Spindle number: 1 axis
Aperture accuracy: IT8 ~ IT11
Surface roughness of the hole: Ra ≤ 3.2nm
Deflection of hole axis to datum: 0.5/1000 (S45#, wire 10mm)
Filtering accuracy: 20 nm
Damping support frame: 1

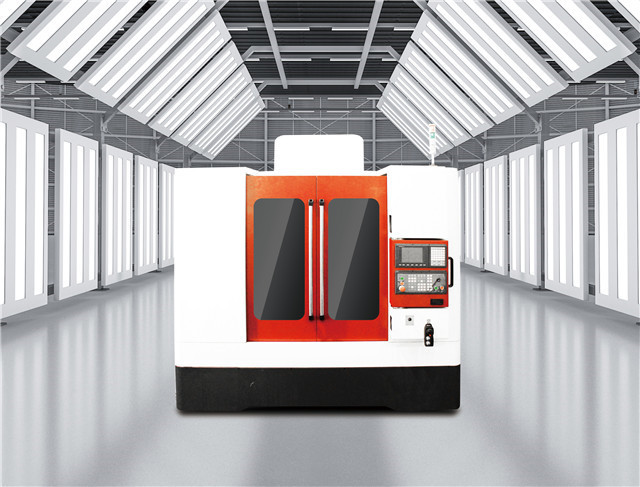

Pictures show
