Custom Axis-500/2

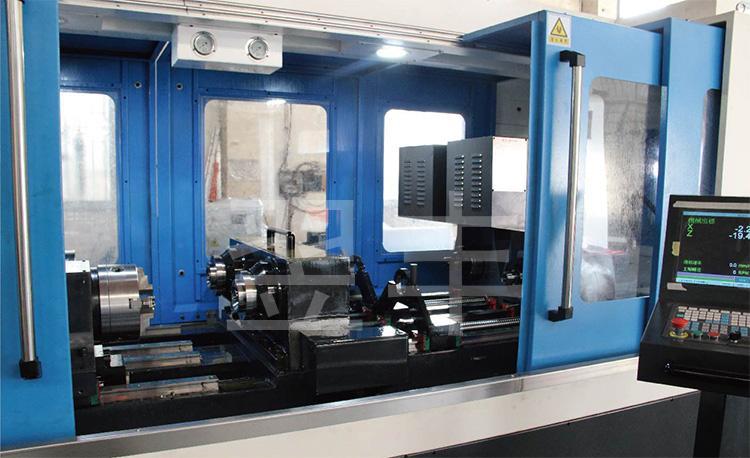

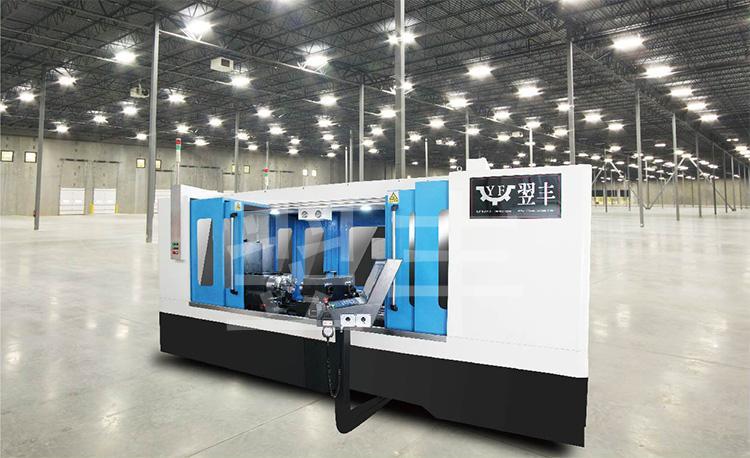

Axis-500/2 CNC deep hole drilling machine



Spindle center height customized according to customer requirements



Technical Parameters

Drilling depth: Z1:500mm，Z2:500mm

Worktable size: Chuck (workpiece clamping diameter: according to customer workpiece outer diameter)

Machine weight: 6 tons

Spindle center height: 150mm, distance between two spindles: according to customer requirements

Feed stroke: 550mm

Spindle speed range (stepless): 0～4500r/min (up to 7000r/min)

Tool feed speed range (stepless): 0～150mm/min

Rapid traverse speed: 5000mm/min

Spindle motor power: 11KW×2

Feed servo motor power: 2.0KW×2

Oil pump power: High pressure pump (7.5KW) Low pressure pump (7.5KW)

Hydraulic system power: 0.75KW

Total machine power: 45kw

Cutting oil cooling pressure: 2-100KG/cm2

Cutting oil circulation flow rate: 6-60L/min

Number of spindle axes: 2 axes

Cutting oil tank capacity: 800L

Hole diameter accuracy: IT8~IT11

Surface roughness of the hole: Ra ≤3.2μm

Deviation of hole axis to datum: 0.5/1000mm (general material 45#, diameter ∮10mm)

Spindle inner hole runout accuracy: 0.01mm

Filtration accuracy: 20μm

Shock absorption support frame: 1

Movement method: Spindle movement, chuck rotation

Spindle oil pipe connection method: Imported rotary joint, preventing oil leakage

Guide rail lubrication method: Centralized lubrication with grease

Coordinate movement: Z (drilling direction) one coordinate movement
