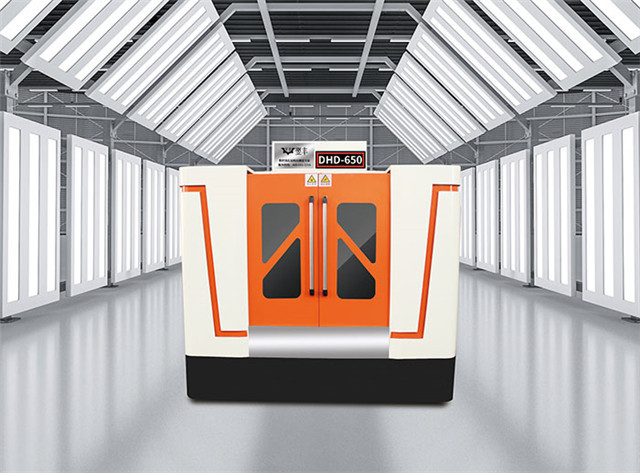

DHD-650

DHD-650

PICTURESHOW       DHD-650   ParameterDetails700mmmaximumdepthofdrilling5tonsofmachineweight,3tonsworkbenchbearing,25kwtotalpowerofthemachine，18mmworkbenchTslot,cuttingfueltankcapacityof400l. Technical

Category:

Triaxial deep-hole drilling machine

Related Products Leave a Message

Project Description

Parameters for details
Maximum depth of 700mm drill hole
5 tons of machine weight, 3 tons of table bearing, 20KW total power of machine, 18mm table T groove.

Technical parameters
Drilling diameter: 3 ~ 20mm
Table size: 500×800mm
Machine size: 3900×2250×2200mm
Triaxial travel:
Table X (650mm) column Y (650mm) feed Z (700mm)
Spindle speed range (stepless) : 0 ~ 4500r/min
Tool feed speed range (stepless) : 0 ~ 200mm/min (non-restrictive parameter)
Fast moving speed: 5000mm/min
Spindle motor power: 5.5kw
Three-axis servo motor power: X (1KW) Y (1KW) Z (1KW)
Oil pump power: high pressure pump (3.7kw) low pressure pump (7.5kw)
Power: 0.2kw
Oil temperature control system power: 3P
Cutting oil pressure: 10Mpa
Spindle number: 1 axis
Aperture accuracy: IT8 ~ IT11
Surface roughness of the hole: Ra ≤ 3.2nm
Deflection of hole axis to datum: 0.5/1000 (S45#, wire 10mm)
Filtering accuracy: 20 nm
Damping support frame: 2

Pictures show
