Yikefeng Machine Tool

Non-standard Machine Tools

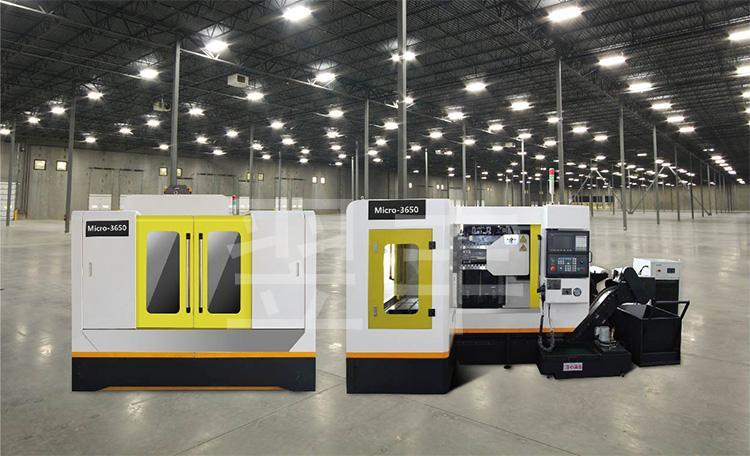

Custom Micro-3650



Drilling diameter range: φ1.0～φ6mm

Drilling depth of 600mm, worktable size of 500×800mm, worktable load capacity of 2 tons, machine weight of 4 tons, total machine power of 21KW, cutting oil tank pressure of 10Mpa, worktable T-slot of 18mm, machine size of 4000×2600×2200mm.





Technical Parameters

Drilling diameter range: φ1～φ6mm

Drilling depth: 600mm

Worktable size: 500×800mm

Worktable load capacity: 2 tons

Machine weight: 4 tons

Machine size: 4000×2300×2000mm

Three-axis travel: Worktable X: 650mm Column Y: 500mm Feed Z: 650mm

Spindle speed range (stepless): 0～15000r/min

Tool feed speed range (stepless): 0～200mm/min (non-restrictive parameter)

Rapid traverse speed: 5000mm/min

Electric spindle power: 2.4KW

Three-axis servo motor power: X: 1KW Y: 1KW Z: 1KW

Oil pump power: 7.5KW

Chip conveyor power: 0.2KW

Oil temperature control system power: 3P

Total machine power: 21KW

Cutting oil pressure: 10Mpa

Number of spindle shafts: 1

Hole diameter accuracy: IT8～IT11

Surface roughness of hole: Ra ≤3.2μm

Deviation of hole axis to reference: 1/1000 (S45#, φ3mm)

Filtration accuracy: 20μm

Worktable T-slot: 18mm

Shock absorption support frame: 2
