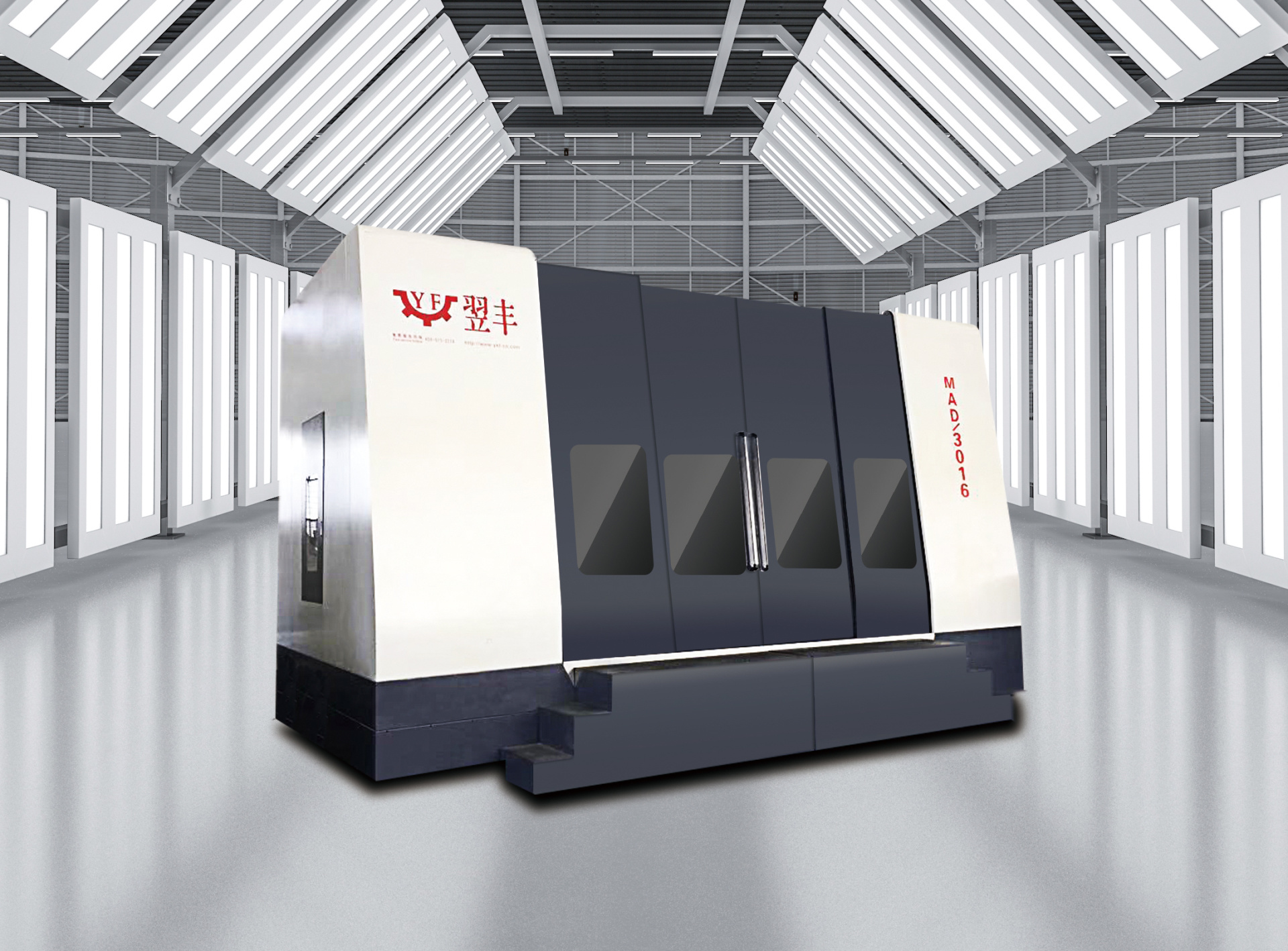

MAD-3016
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Changzhou Yi Feng Machine Co., Ltd. can be is a CNC deep hole drilling machine, shaft deep hole drilling machine, deep hole drilling machine tube sheet, porous deep hole drilling machines, multi-axis milling deep hole drilling machines, horizontal valve deep hole drilling machines and other machine series development, production, sales and service in one of the manufacturing enterprise.
Quantity
-
+
1
Detail
Parameters for details
Technical parameters
Bore diameter of gun drill: 3-35mm
Drill hole diameter: 18-65mm
Maximum drilling depth of gun drill: 1600+500mm
Maximum drilling depth of spray and suction drill: 1200mm
Tapping ability: M36
Milling capacity: 400cc/min
Left and right travel (X) of the workbench: 3000mm
Slide table travel (Y) : 1600mm
Column stroke (W) : 900mm
Rotation Angle (A): the spindle turns 15 degrees up and 25 degrees down
Spindle center to work table: 0-6000mm
Spindle end face to center of table: 500-1400mm
Spindle taper hole: BT50
Maximum spindle speed: 4000(optional 6000)
Rapid feed (X,Y,Z,W) : 8m/min
Maximum speed (A):215Dergree/min
Maximum speed of table (B) : 2.7 RPM
Spindle motor: 18.5/22(30min)KW
X-axis feed servo motor: 35n.m
Y-axis feed servo motor: 35n.m
Z-axis feed servo motor: 35n.m
W shaft feed servo motor: 28.4N.m
Axis A feed servo motor: 28.4N.m
B axis feed servo motor: 35n.m
Total machine power: 75KW
Weight: 30 ton
Size (length × width) : 2500×1800mm
Coolant pressure range (gun drill) : 2-11mpa
Coolant pressure range (jet drill) : 1.0-2.0mpa
Coolant flow range (gun drill) : 6-110l /min
Coolant flow range (jet drill) : 40/190l /min
Machine floor area (length × width) : 8900×7580
Maximum height of machine: 4780mm
Machine weight: 45ton
