Yikefeng Machine Tool

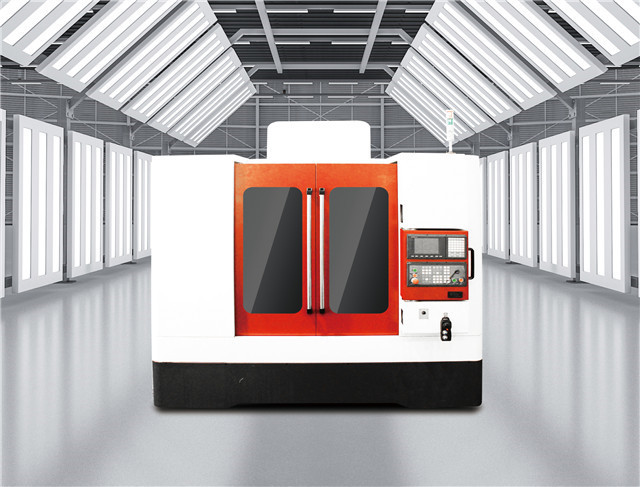

V-1050

V-1050

Category:

Products

Vertical deep hole drill

Related Products Leave a Message

Project Description

Parameters for details
Maximum drilling depth of 300mm
0.6 ton table bearing, 8 tons machine weight
Total power of 20KW machine tool, 18mm table T groove.

Technical parameters
Drilling diameter: 2. ~ 20mm
Table size: 1200×600mm
Machine size: 2600×2800×2200mm
Three-axis travel: table X (1000mm) column Y (600mm) feed Z (450mm)
Spindle speed range (stepless) : 0 ~ 8000r/min
Tool feed speed range (stepless) : 7000mm/min (non-restrictive parameter)
Fast moving speed: 5000mm/min
Spindle motor power: 7.5KW
Three-axis servo motor power: X (2.0kw) Y (2.0kw) Z (2.9kw)
Oil pump power: high pressure pump (3.7kw) low pressure pump (5.5kw)
Power: 0.2kw
Oil temperature control system power: 3P
Cutting oil pressure: 10Mpa
Spindle number: 1 axis
Aperture accuracy: IT8 ~ IT11
Surface roughness of the hole: Ra ≤ 3.2nm
Deflection of hole axis to datum: 0.5/1000 (S45#, wire 10mm)
Filtering accuracy: 20 nm
Damping support frame: 1

Pictures show
