DHD-1660（1600）

DHD-1660（1600）

PICTURESHOW       DHD-1660（1600）   ParameterDetails1600mmmaximumdepthofdrilling13tonsofmachineweight,12tonsworkbenchbearing,30kwtotalpowerofthemachine，22mmworkbenchTslot,cuttingfueltankcapacityof600l.

Category:

Triaxial deep-hole drilling machine

Related Products Leave a Message

Project Description

Parameters for details
Maximum drilling depth of 1600mm
13t machine weight, 12t table bearing, 30KW machine total power, 22mm table T groove, 600L cutting tank capacity.

Technical parameters
Diameter of drilling hole: 2.5 ~ 32mm
Table size: 1800×1200mm
Machine size: 6000×4200×3000mm
Three-axis travel: work table X (1600mm) vertical column Y (1200mm) feed Z (1600mm)
Spindle speed range (stepless) : 0 ~ 8000r/min
Tool feed speed range (stepless) : 0 ~ 200mm/min (non-restrictive parameter)
Fast moving speed: 5000mm/min
Spindle motor power: 7.5KW
Three-axis servo motor power: X (2.0kw) Y (2.0kw) Z (1.3kw)
Oil pump power: high pressure pump (3.7kw) low pressure pump (5.5kw)
Power: 0.2kw
Oil temperature control system power: 3P
Cutting oil pressure: 10Mpa
Spindle number: 1 axis
Aperture accuracy: IT8 ~ IT11
Surface roughness of the hole: Ra ≤ 3.2nm
Deflection of hole axis to datum: 0.5/1000 (S45#, wire 10mm)
Filtering accuracy: 20 nm
Damping support frame: 3

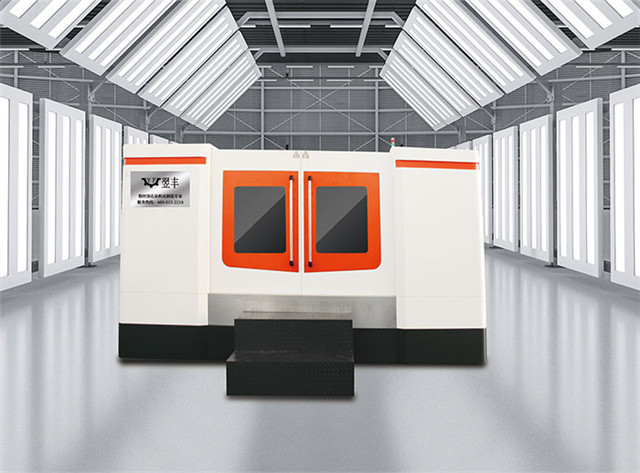

Pictures show

Keywords: DHD-1660（1600）
