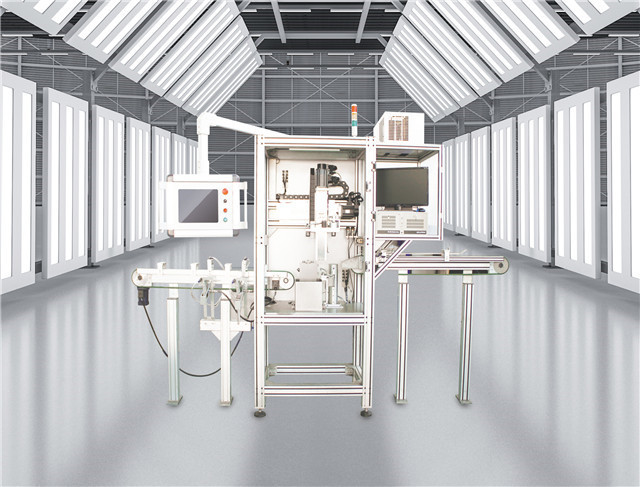

Automatic ultrasonic flaw detector

Automatic ultrasonic flaw detector

Category:

Horizontal valve deep-hole drilling machine

Related Products Leave a Message

Project Description

The automatic ultrasonic flaw detection machine has stable materials, reasonable interface installation, adjustable valve rotation (at least 2 weeks), accurate discharge of the valve, PLC program can be connected with the frying test system to accurately identify qualified and rejected products, detection efficiency: ≤6s/ piece.


Technical parameters
Operating frequency: 1mhz-15mhz
Wide range of repetition frequency adjustment: 100hz-10khz
Instrument dynamic range: ≥36dB
Vertical linear error: ≤3%
Horizontal linear error: ≤0.1%
Resolution: >32dB(5N14)
Sensitivity allowance: > 64 db (200 mm deep Φ 2 flat bottom hole)
Transmission voltage: 50-500v adjustable
Detection range: 5 to 15 / L50 Φ - 300 mm
Number of flaw detector channels: two channels
Receiving mode: single receipt
RS232 interface: the instrument communicates directly with PLC to realize automatic flaw detection.

Pictures show
