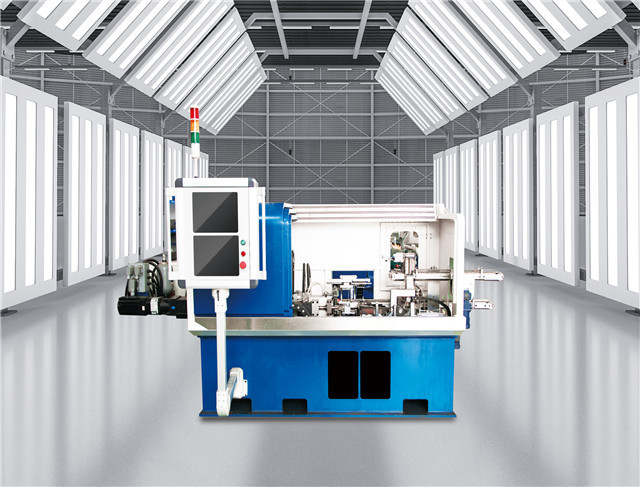

Friction welding machine

Friction welding machine

Category:

Horizontal valve deep-hole drilling machine

Related Products Leave a Message

Project Description

Friction welding machine is specially designed for hollow filled sodium valve welding machine, it is a high end product of mechanical and electrical integration, which can replace the high quality machine tool of imported equipment, with the reliable welding machine, high efficiency, at the same time, the machine can also be used for solid valve welding machine.

Technical parameters
Maximum head forging force: 1500Kg
Welding diameter: Max:8mm
Min: 5.5 mm
Solid valve: 55mm-8mm
External size: main engine (L×W×H) =3000×1400×1600
Hydraulic oil station :(L×W×H) =1000×1000×800
Weight: about 2T
Total power: 60KVA
Power supply: three-phase four-wire tn-c system power supply AC380V(50Hz)
Compressed air: 0.5mpa
Hydraulic oil pressure: 100MPa
Spindle speed: 0-6000rpm
Hydraulic pressure: 0-10mpa
Welding rod diameter: 5.5-8mm
Machine tool beat: 7 seconds/branch (6mm rod diameter)
Hydraulic oil temperature: less than 50 degrees
Total welding range: ±4mm
Pulsation of welding products: less than 25 wires
Spindle braking time: 0.45s

Pictures show
