DHD-1613
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Changzhou Yi Feng Machine Co., Ltd. can be is a CNC deep hole drilling machine, shaft deep hole drilling machine, deep hole drilling machine tube sheet, porous deep hole drilling machines, multi-axis milling deep hole drilling machines, horizontal valve deep hole drilling machines and other machine series development, production, sales and service in one of the manufacturing enterprise.
Quantity
-
+
1
Detail
Parameters for details
Maximum drill depth of 1300mm
8t table bearing, 12t machine weight, 5400×4000×2800mm machine size, 1000×1700mm table size, 30KW machine total power, 600L cutting tank capacity, 22mm table t-groove.
Technical parameters
Diameter of drilling hole: 2.5 ~ 32mm
Table size: 1000×1700mm
Machine size: 5400×4000×2800mm
Three-axis travel: work table X (1600mm) vertical column Y (1000mm) feed Z (1300mm)
Spindle speed range (stepless) : 0 ~ 8000r/min
Tool feed speed range (stepless) : 0 ~ 200mm/min (non-restrictive parameter)
Fast moving speed: 5000mm/min
Spindle motor power: 7.5KW
Three-axis servo motor power: X (2.0kw) Y (2.0kw) Z (1.3kw)
Oil pump power: high pressure pump (3.7kw) low pressure pump (5.5kw)
Power: 0.2kw
Oil temperature control system power: 3P
Cutting oil pressure: 10Mpa
Spindle number: 1 axis
Aperture accuracy: IT8 ~ IT11
Surface roughness of the hole: Ra ≤ 3.2nm
Deflection of hole axis to datum: 0.5/1000 (S45#, wire 10mm)
Filtering accuracy: 20 nm
Damping support frame: 3

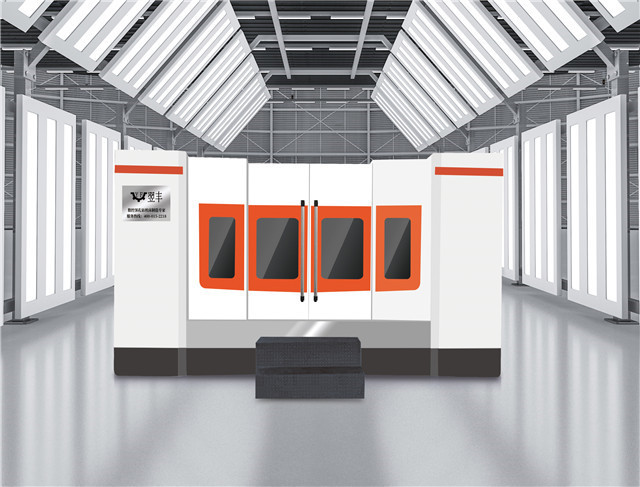

Pictures show
