Yikefeng Machine Tool

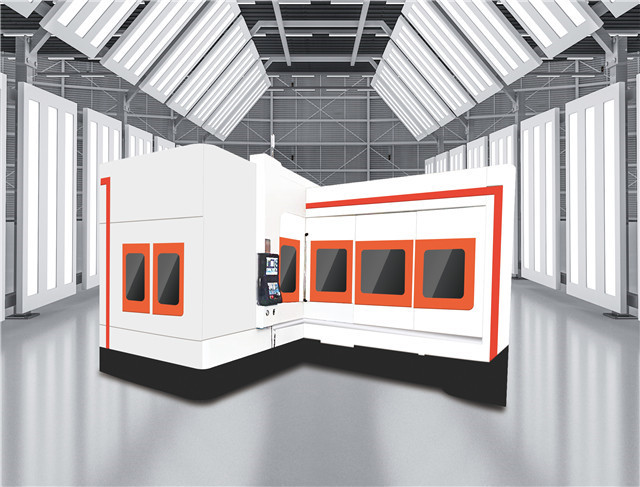

DHD-3220

DHD-3220

PICTURESHOW     Foursuspensionsupportingbracket2000mmmaximumdepthofdrilling,18tonsofworkbenchbearing,20tonsofmachineweight,1600*3000mmsizetable,7500×6500×3200mmmachinesize,32kwthetotalpowerofmachineto

Category:

Triaxial deep-hole drilling machine

Related Products Leave a Message

Project Description

Parameters for details
4 damping support frames
Maximum drilling depth of 2000mm, load bearing of 18t table, weight of 20t machine, size of table is 1600×3000mm, 7500×6500×3200mm, total power of 32KW machine, cutting 800L fuel tank capacity, t-groove of 22mm table.

Technical parameters
Diameter of borehole: 3 ~ 42mm
Table size: 1600×3000mm
Total machine power: 32KW
Machine size: 7500×6500×3200mm
Three-axis travel: work table X (3000mm) column Y (1500mm) feed Z (2000mm)
Spindle speed range (stepless) : 0 ~ 8000r/min
Tool feed speed range (stepless) : 0 ~ 200mm/min (non-restrictive parameter)
Fast moving speed: 5000mm/min
Spindle motor power: 11KW
Three-axis servo motor power: X (3.0kw) Y (3.0kw) Z (1.3kw)
Oil pump power: high pressure pump (3.7kw) low pressure pump (7.5kw)
Power: 0.2kw
Oil temperature control system power: 3P
Cutting oil pressure: 10Mpa
Cutting tank capacity: 800L
Spindle number: 1 axis
Aperture accuracy: IT8 ~ IT11
Surface roughness of the hole: Ra ≤ 3.2nm
Deflection of hole axis to datum: 0.5/1000 (S45#, wire 10mm)
Filtering accuracy: 20 nm

Pictures show
